Fluid Coolers - Dry V-Bank

Details

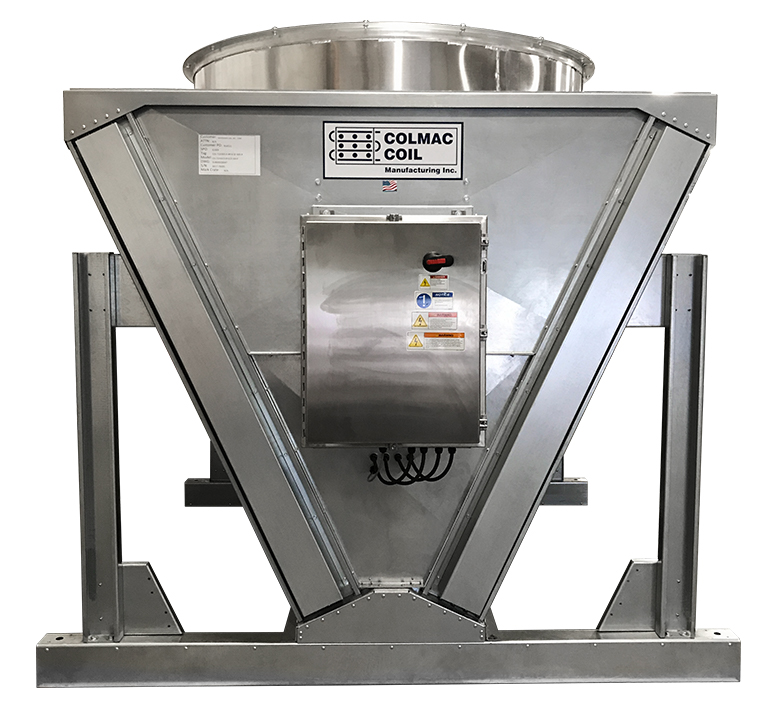

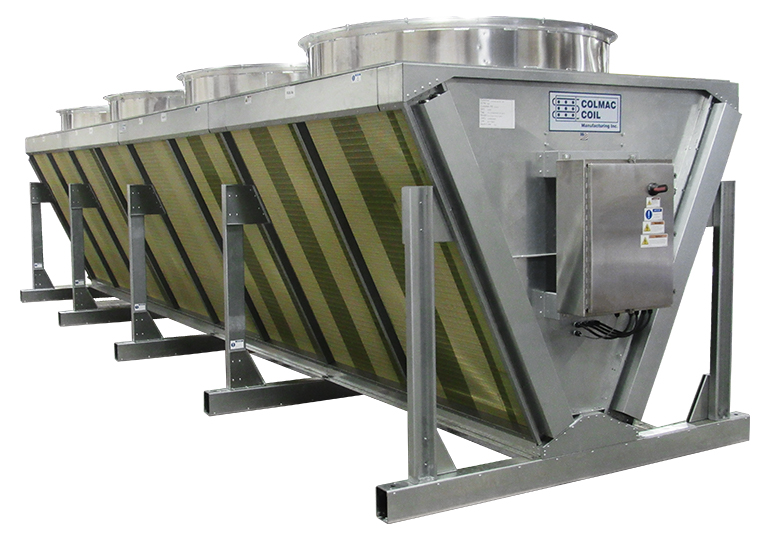

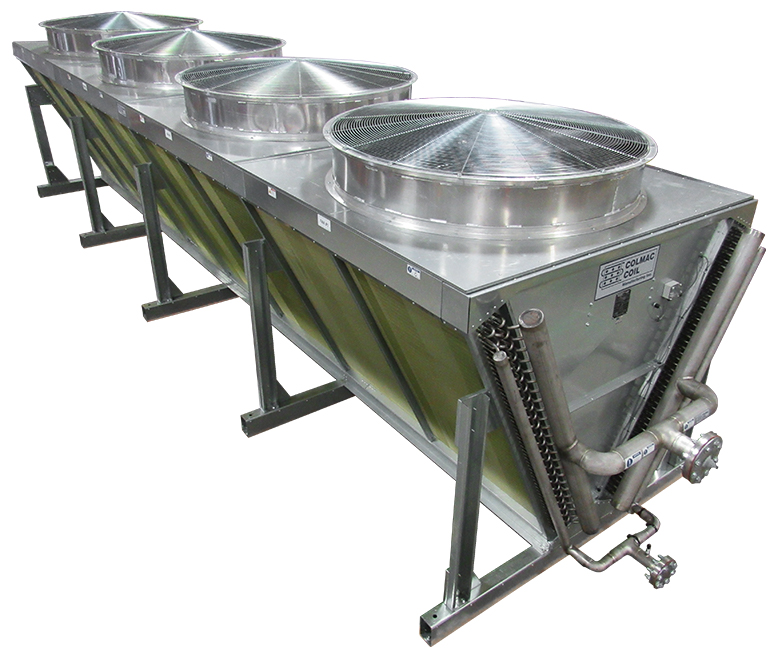

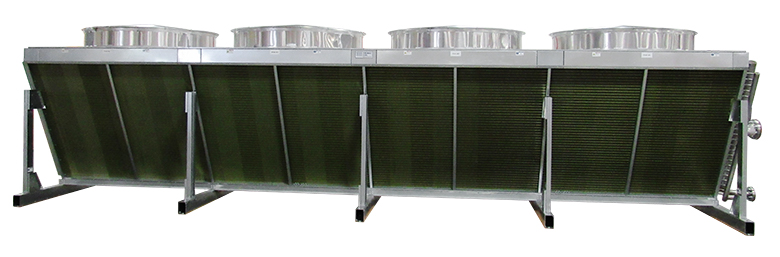

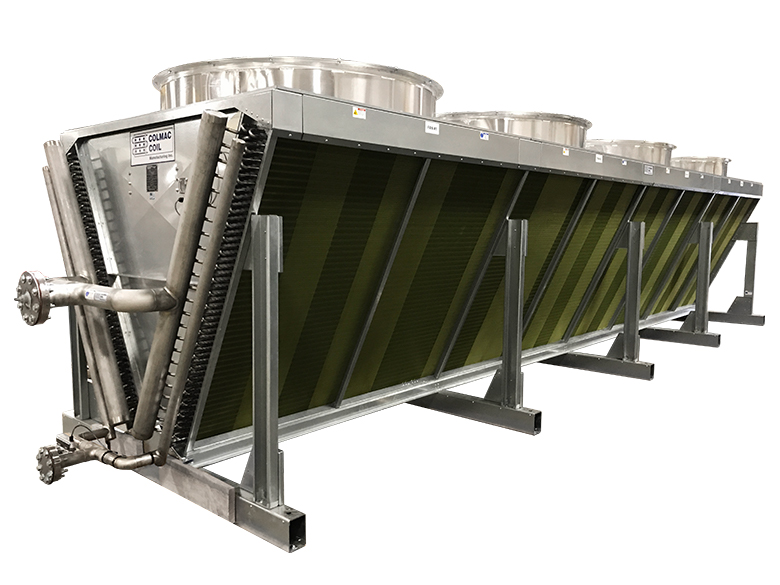

Colmac Coil’s V-Bank configuration offers a compact design with larger coils and high airflows with the smallest footprint and weight. The many customized options of fin type, coil rows, and modular design allows for capacity optimization.

The V-Bank configuration is ideal for an application requiring a high capacity and smaller footprint.

Features

Designed to fit your footprint

  • Maximum design pressure of 1800 psig
  • 1-16 fan configurations

Tubes/fins options

  • 304 Stainless steel tubes/ 304 stainless steel fins
  • 304 Stainless steel tubes/aluminum fins
  • 304 Stainless steel tubes/epoxy coated aluminum fins
  • 316 Stainless steel tubes/ 316 stainless steel fins
  • 316 Stainless steel tubes/aluminum fins
  • 316 Stainless steel tubes/epoxy coated aluminum fins

Casing and Structure

  • G-235 galvanized steel standard
  • Stainless steel optional

Fan Motors

  • EC
  • AC

Fan type

  • Composite
  • Aluminum
  • Stamped Aluminum

Refrigerants

  • Any single or two-phase fluid
