Dry Coolers & Condensers

Fluid Coolers - Flat Deck - Horizontal

Details

Colmac fluid coolers are unique to the marketplace. Our parametric software design supports an unlimited number of models. We can exactly fit your footprint to maximize performance in the space available. Available in induced and forced draft variations for high temperature fluid cooling applications.

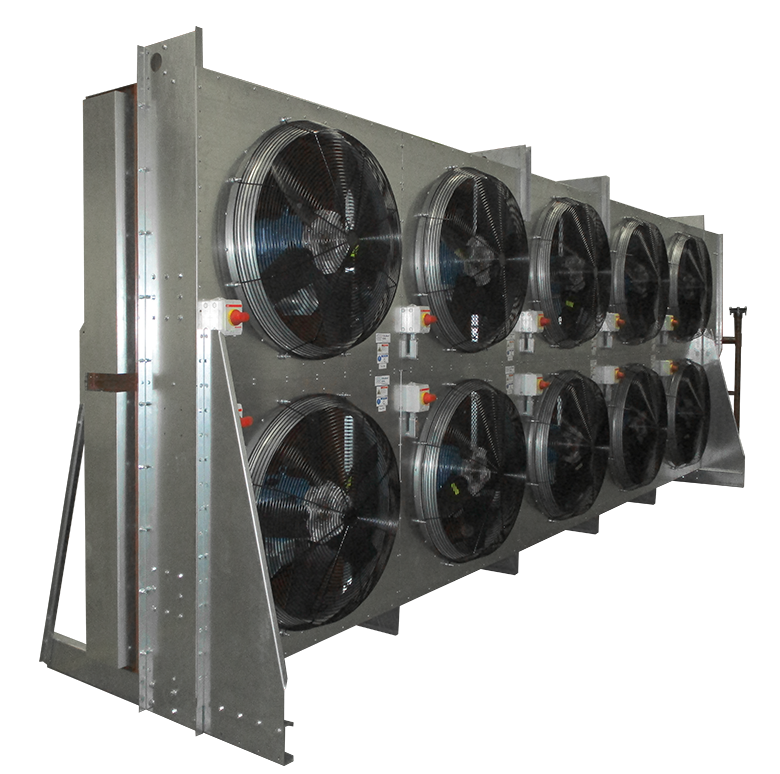

Fluid Cooler Horizontal 2

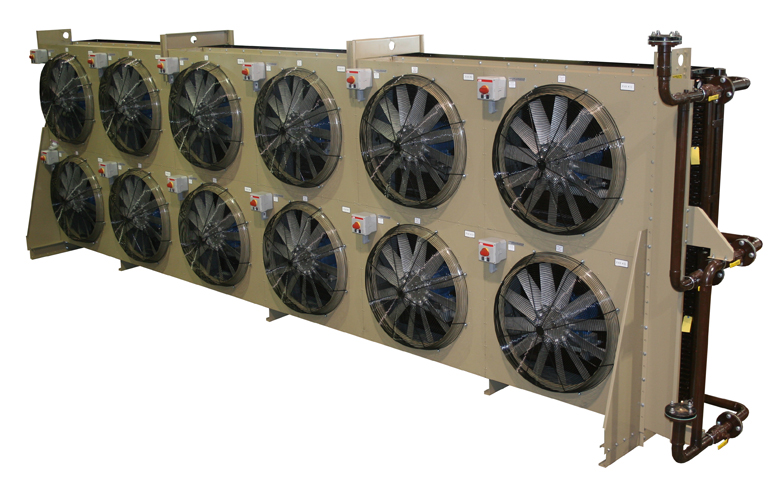

Afv H Fluid 1

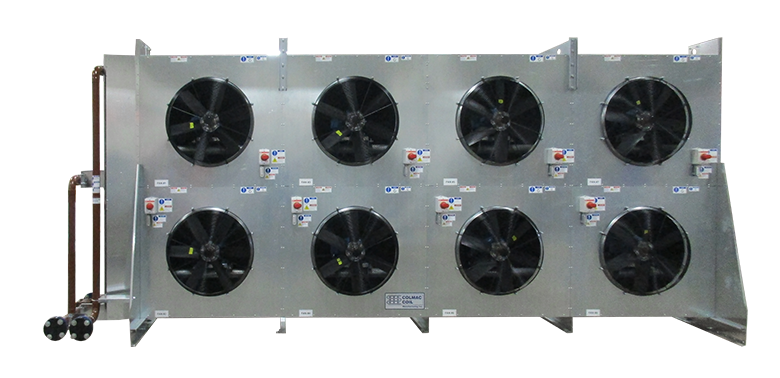

Fluid Cooler 5 780 X 378

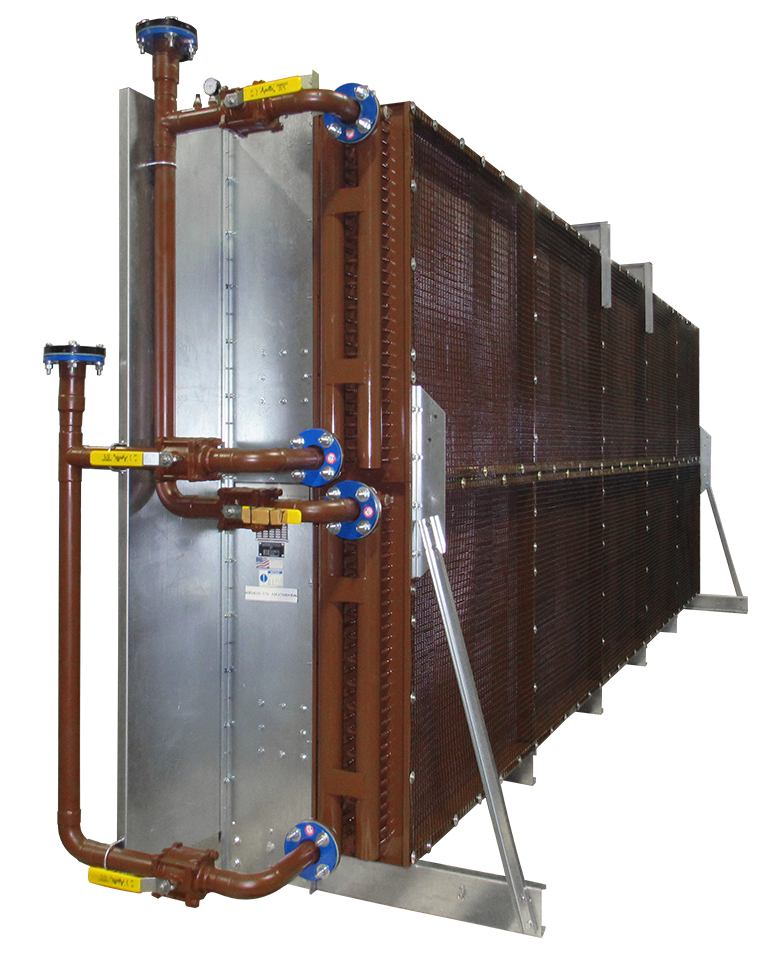

Fluid Cooler Horizontal 4 780 X 971
Features
  • Capacities up to 150 tons (527 KW)
  • Induced or forced draft available
  • 24", 30", 36" fan diameters available
  • ODP and/or TEFC fan motors ¾ to 7 ½ hp
  • Galvanized steel cabinets
  • Copper tubes with aluminum plate fins
  • Finned length up to 324"
Options
  • High capacity polypropylene fan blades
  • Premium efficient, VFD compatible fan motors
  • Tubes available: Stainless steel, carbon steel, aluminum, cupro-nickel
  • Fins available: stainless steel, copper, polycoat aluminum
  • Baked phenolic coatings
  • UL 508 listed control panels
  • Fan cycle controls
  • Weather Guards
  • Tree pollen filters
  • ASME "U" stamped coil cores
  • Stacked coil cores
Applications
  • Dry cooling applications where water may be scarce
  • Engine jacket water cooling
  • Process cooling
  • Winter "free cooling" applications to replace or idle chillers during winter months when low outdoor ambient temperatures are sufficient to meet cooling demand
  • Industrial cooling
  • Greenhouse cooling
  • Casting ponds
Resources
Fluid Coolers and Condensers Brochure
IOM - Fluid Cooler
